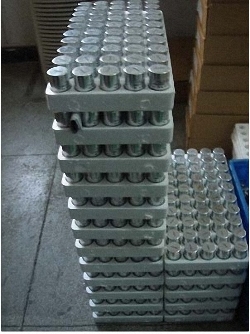

CBB65 film Capacitors
1. Size: aluminum can (round or ellipse)
2. Featuring:
The capacitor adopts the metallic polypropylene film as the dielectric electrode to there be non-inductively wound, through vacuum impregnation, with the encapsulation of aluminum. The explosion-proof capacitor has the innocently, without leaking and liquid material, small tangent in waste angle, strong over loading capacity, good self-concrescence, pro-environment, safe and reliable. The capacitor specially suit for A.C single motor, air conditioner, pump, domestic electric and health-machine, electronics and so on.
3. Technical parameter:
Capacitance: 5~100MFD (round shell); 5~50MFD (ellipse shell)
Operating Frequency: 50/60Hz
Capacitance Tolerance: +-5% or fulfilled upon request
Rated voltage: 125V~500V.AC
Ambient Temperature: -40 oC ~+85oC
Dissipation Factor: Tanδ≤ 0.002(20 oC .50/60Hz)
Terminal voltage: AC≥1.75Un 5S non-breakdown
Voltage between terminal and case: AC≥2000V 10S non-breakdown
Insulation Resistance: between derivation terminal: Rj·C≥ 3000MΩ.μF (20℃.100V.AC)
between terminal and case: Rj≥1000MΩ
Executing Standards: GB/T3667.1-2005 IEC60252-1:2001.
|
CBB61 film Capacitors
Featuring :
1. outer covering: ABS or gathers third outer covering
2. characteristic and the use: This product has the stability, to bear the surge current, overload capacity well strongly, to lose, the dielectric resistance high, the fixed working life to be long slightly, the self-recovery performance outstanding, the built-in being flame-resistant epoxy resin fills installs safe reliable, the capacitor non-toxic not to have divulging and the liquid material, favors characteristics and so on environmental protection. Mainly uses in refrigerator, air conditioning, motor, water pump, generator, domestic electric appliances, electronic products and so on.
3. technical parameter:
capacity scope: 1μF~25μF
capacity tolerance: ±5% or request the production according to the customer. rated voltage: 125V~500VAC, 50/60Hz
application temperature scope: -40℃~+70℃
loss tangent value: ≤0.004 (20℃.50/60Hz) between leading-out
terminal standing voltage: AC≥1.75Un 5S non-penetrates between the leading-out terminal and the outer covering
the standing voltage: AC≥2000V 10S non-penetrates
the dielectric resistance: Between leading-out terminal ≥3000MΩ.μF (20℃.100VAC); The leading-out terminal Rj≥1000MΩ carries out the standard with place the shell between: GB/T3667.1-2005 IEC60252-1:2001.
CBB60 film Capacitors
Featuring:
1. outer covering: ABS, gathers third, aluminum shell
2. characteristic and use: This product has the stability, to bear the surge current, overload capacity well strongly, to lose, the dielectric resistance high, the fixed working life to be long slightly, the self-recovery performance outstanding, the built-in being flame-resistant epoxy resin fills installs safe reliable, the capacitor non-toxic not to have divulging and the liquid material, favors characteristics and so on environmental protection. Mainly uses in refrigerator, air conditioning, motor, water pump, generator, clearer, domestic electric appliances, electronic products and so on.
3. technical parameter: capacity scope: 3μF~150μF capacity tolerance: ±5% or request the production according to the customer. Rated voltage: 125V~500VAC, 50/60Hz a pplication temperature scope: -25℃~+70℃ loss tangent value: ≤0.003 (20℃.50/60Hz) between leading-out terminal standing voltage: AC≥1.75Un 5S non-penetrates between the leading-out terminal and the outer covering the standing voltage: AC≥2000V 10S non-penetrates the dielectric resistance: Between leading-out terminal Rj · C≥3000MΩ.μF; The leading-out terminal Rj≥1000MΩ carries out the standard with place the shell between: GB/T3667.1-2005 IEC60252-1:2001.
|
|
